AC Voltage Transducers

OSI AC voltage transducers are available to measure absolute average or true RMS AC voltages in ranges up to 1,000 volts, with accuracies from 0.25% of Full Scale through 0.5% of Full Scale. Transducers are available as single or three phase with wired inputs for traditional or DIN rail-mounted packaging.

Available outputs include 0-1mAdc, 4-20mAdc, 0-10Vdc and 0-5Vdc with customized input ranges and output formats available on request.

AC	Input	Output	Connection/Aperture	Product Family
AVERAGE	0-600Vac	0-1mAdc, 4-20mAdc, 0-5Vdc, 0-10Vdc	Direct	AVT, 3AVT, MVT, DVT
RMS	0-1000Vac	0-1mAdc, 4-20mAdc, 0-5Vdc, 0-10Vdc	Direct	AVTR, 3VTR, MVTR, DVTR, VT8

Select a Product & Type

Transducers AC Avg

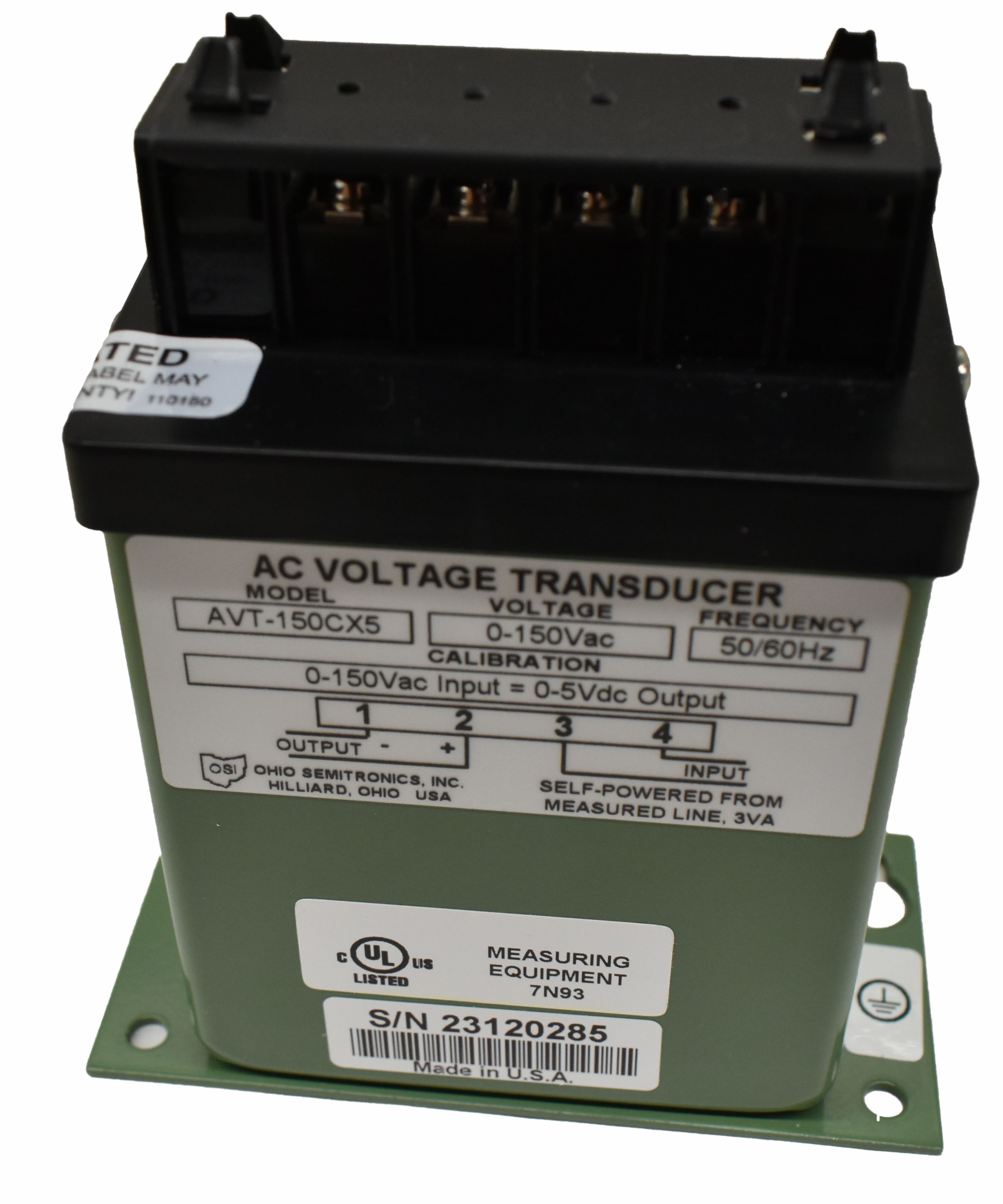

3AVT Three-Phase AC Average Voltage Transducer (Input Range: 0-600Vac F.S.) AVT Single-Phase AC Average Voltage Transducer (Input Range: 0-600Vac F.S.) MVT Single-Phase AC Average Voltage Transducer (Input Range: 0-600Vac F.S.)
Transducers AC RMS

3VTR Three-Phase AC RMS Voltage Transducer (Input Range: 0-600Vac F.S.) AVTR Single-Phase AC RMS Voltage Transducer (Input Range: 0-600Vac F.S.) MVTR AC RMS Voltage Transducer (Input Range: 0-600Vac F.S.) VT8 AC RMS Voltage Transducer (Input Range: 0-250mVdc, 0-1000Vdc F.S.) DVT8 AC RMS Voltage Transducer (Input Range: 0-600Vac F.S.)
