Multifunction Transducers and Power Meters
Ohio Semitronics manufactures and sells a variety of Multifunction meters and transducers which measure and display voltage, current, power and energy parameters for single-phase or three-phase systems. Available in both panel mount and DIN-Rail with multiple options for communications outputs and displays. Frequencies reach up to 400Hz and output options include analog, Modbus/RTU, relay, pulse and serial.
| Frequency | Output Option |
Accuracy | Family |
|---|---|---|---|

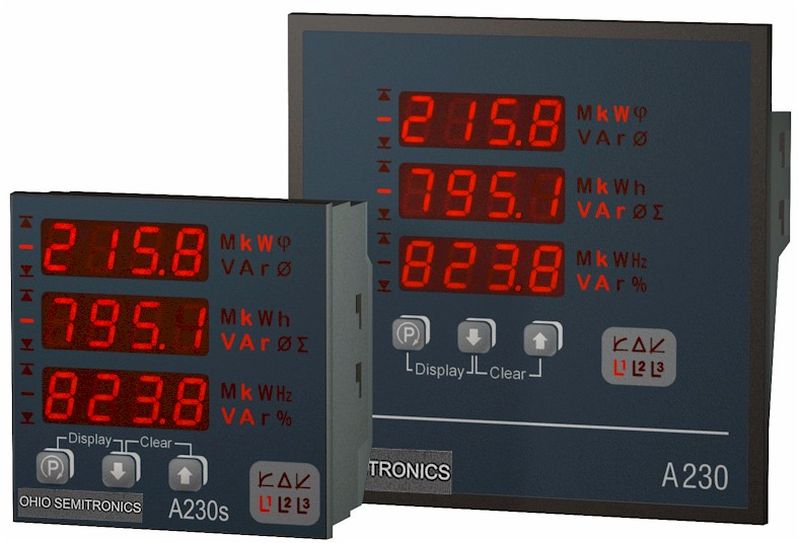

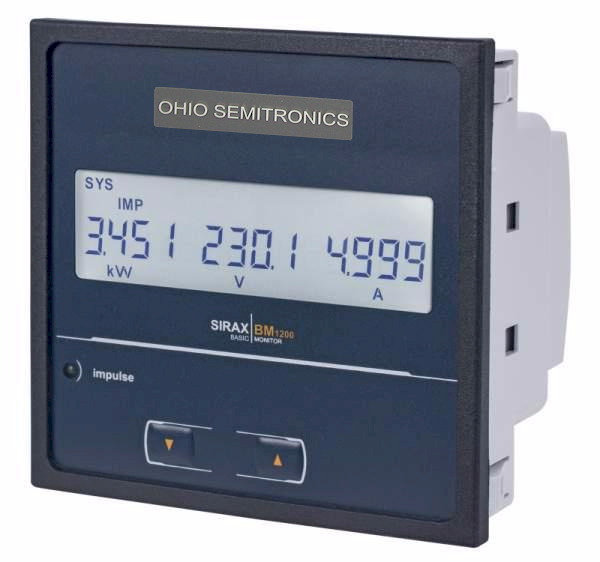

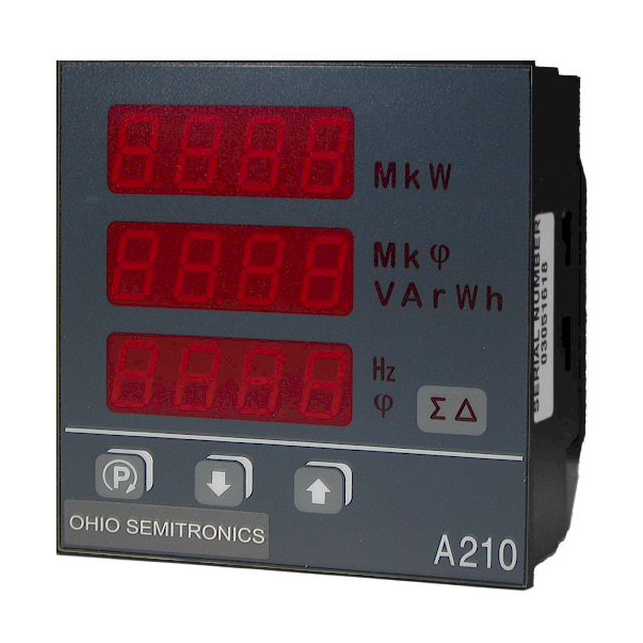

| 45-65Hz | Analog, Modbus/RTU, Relay, Pulse | ±0.1% F.S. to ±1.0% F.S. | A210, A230, Aplus, BM1200, DM5 |
| DC, 25-130Hz, 40th Harmonic of 60Hz | Analog, Serial (RS-422, RS-485) | ±0.1% F.S. | PDM, WPM, WMx |
| 48-62Hz | Analog, Serial (RS-422, RS-232C) | ±0.1% F.S. | DSP |
| 48-70Hz | Analog | ±0.3% F.S. to ±0.5% F.S. | PTB |
| 50-400Hz | Analog | ±0.5% F.S. | PC20 |
